STILO CURVE serie 40

PRODUCTS

Info

Email

info@mjfaber.com

M & WhatsApp

+39  328  921 6 145

_________________________________________________________________________________________

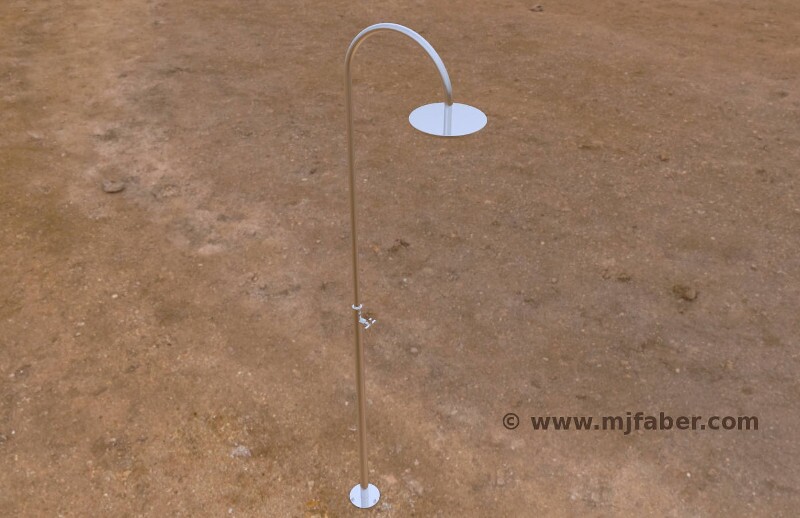

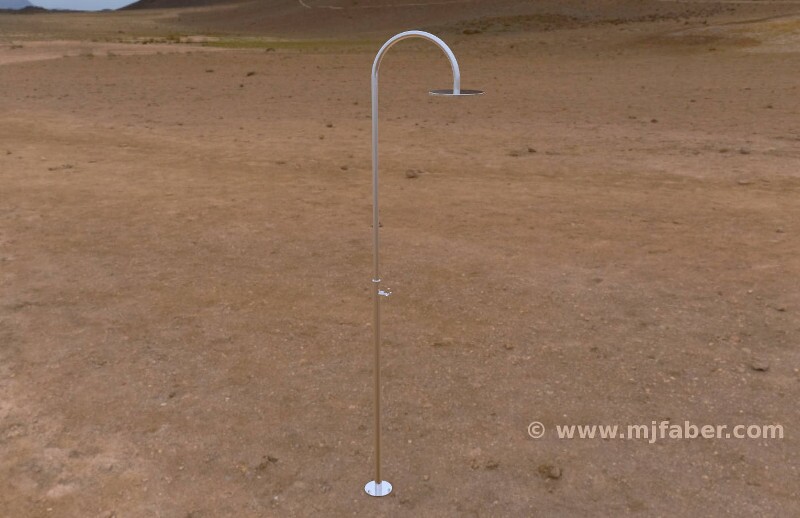

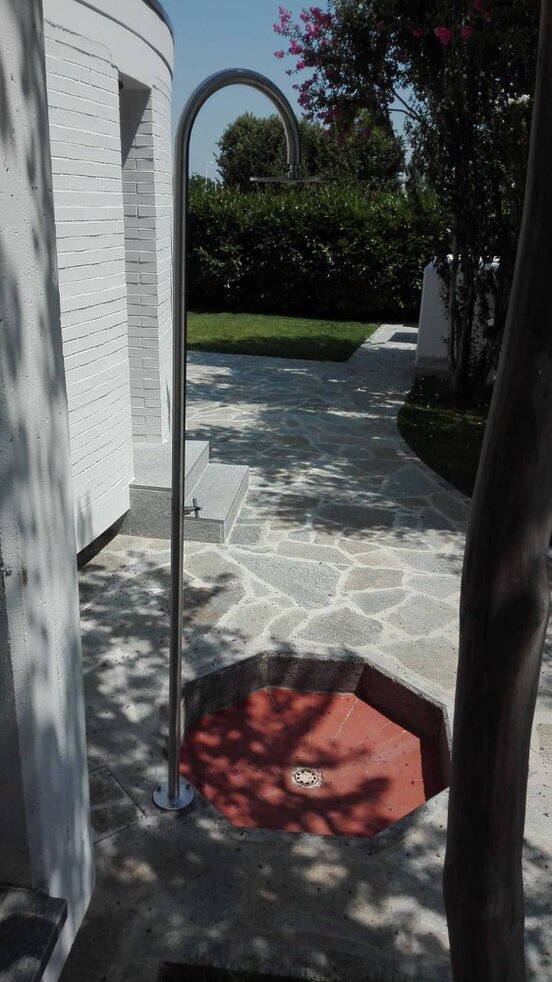

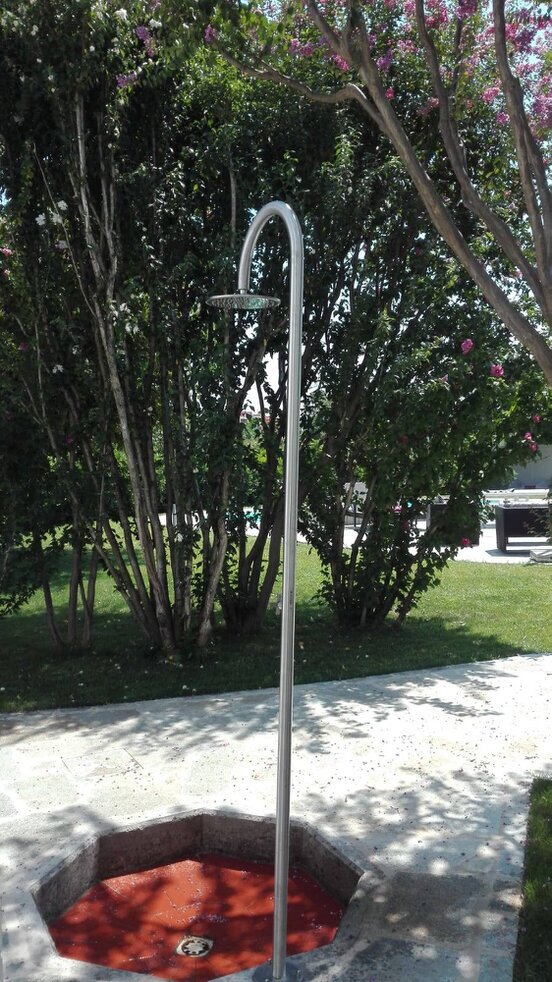

Line STILO CURVE C27-40 by MJ FABER: 1 place
Elegance and minimalist style, made in the best alloy of stainless steel for sea areas such as the s/s aisi  316L.
Made in Italy

rendering images
  • Nr. 1 line of water supply from cold or pre-mixed water

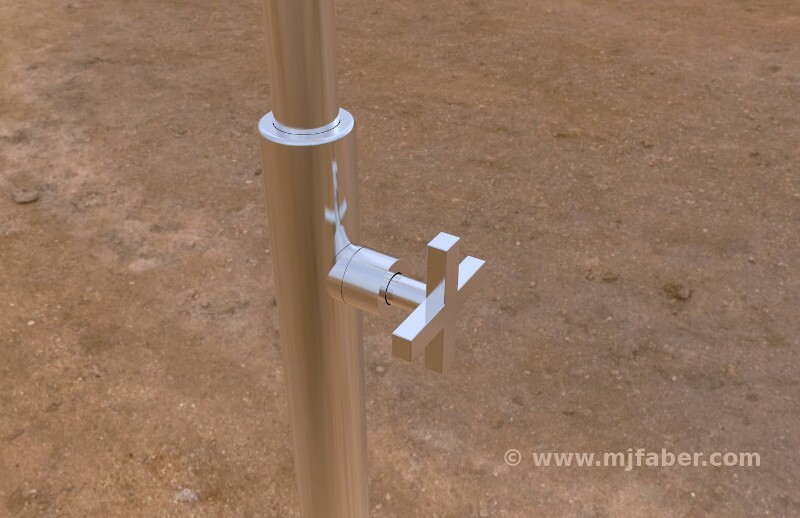

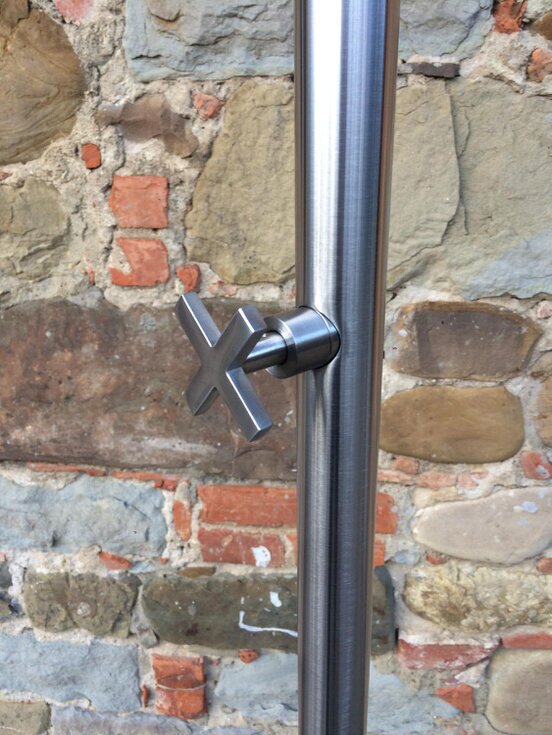

  • Minimal Cross handle stop tap in stainless steel aisi 316L
  • Column in two parts, lower section Ø 40mm and thickness 2mm, upper section Ø 26,9mm and thickness 3mm, in ss 316L
  • Faucet body in ss 316

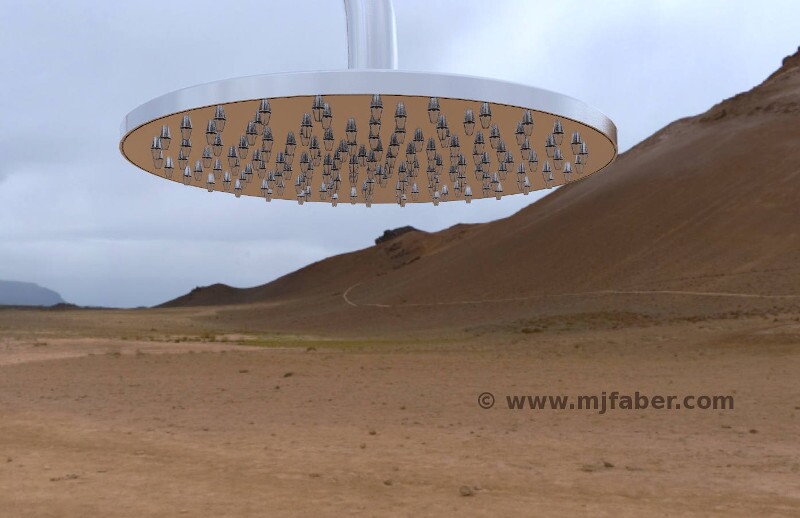

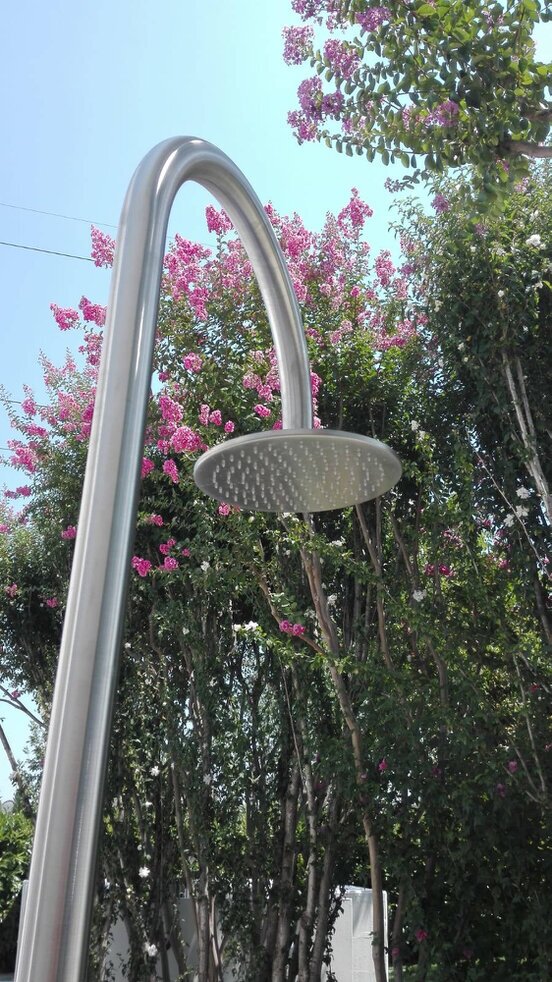

  • Antiscale shower head Ø 240mm in ss 316L whitout ball join (in optional with ball join in ss 316, art.SN)

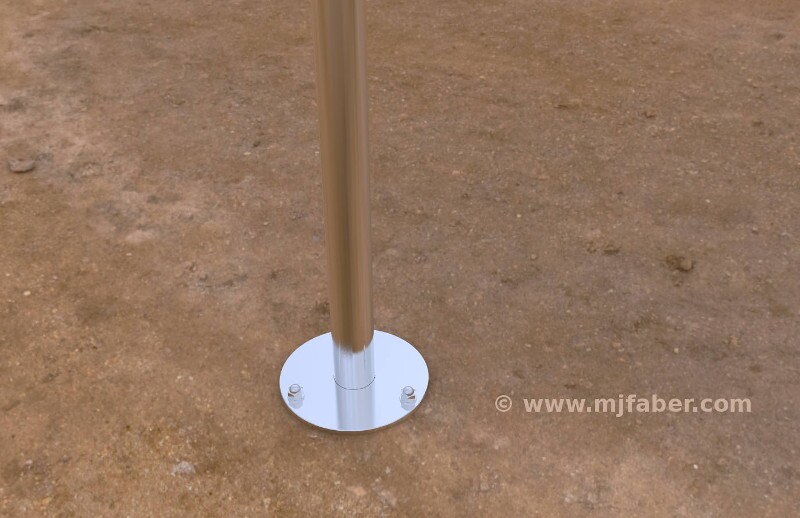

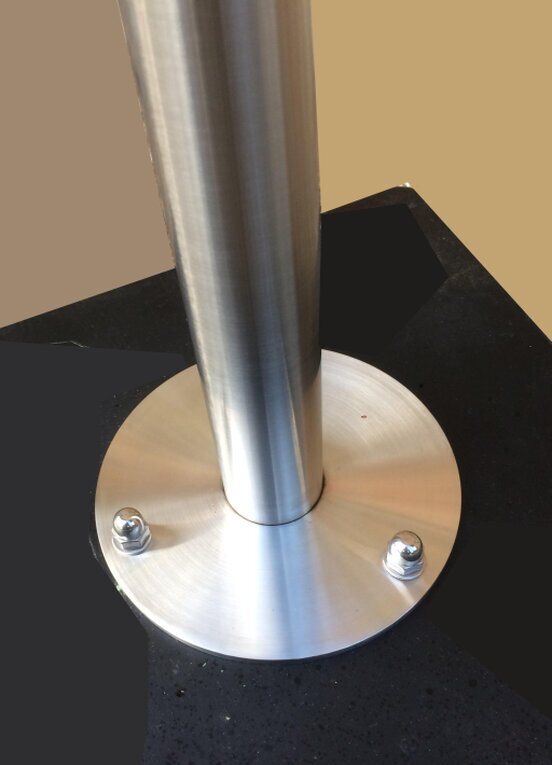

  • Base in ss 316L, at 3 points of anchorage, diameter 146mm and thickness 6mm.
  • Anchorage at floor by nr 3 points with kit in ss 316 (A4) (also available anchorage on sand/ground with inner in optional, art.INN)
  • Water supply from floor (under the base of the column)
  • Finishes available: mirror polished, brushed
  • Simple maintenance





_________________________________________________________________________________________

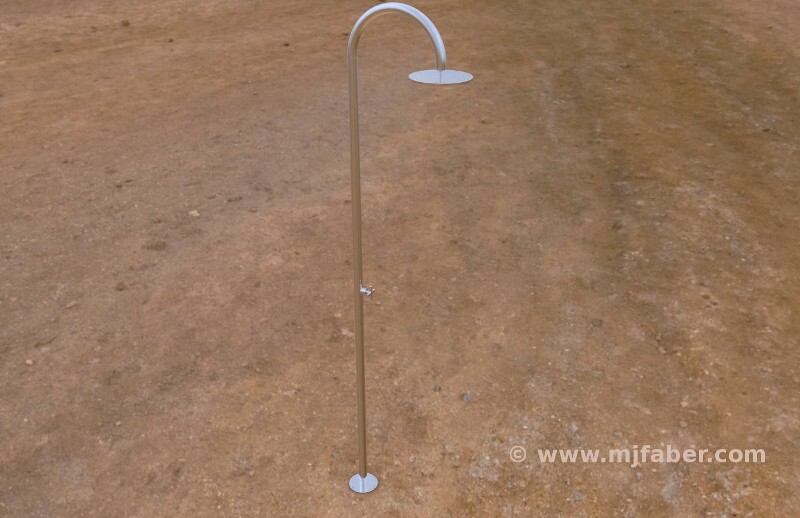

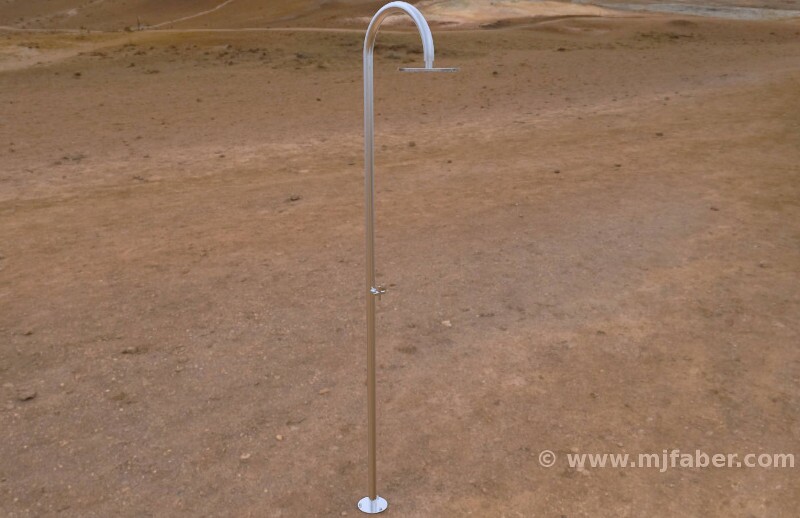

Line STILO CURVE CTB-40 by MJ FABER: 1 place
Elegance and minimalist style, made in the best alloy of stainless steel for sea areas such as the s/s aisi  316L.
Made in Italy

rendering images
  • Nr. 1 line of water supply from cold or pre-mixed water

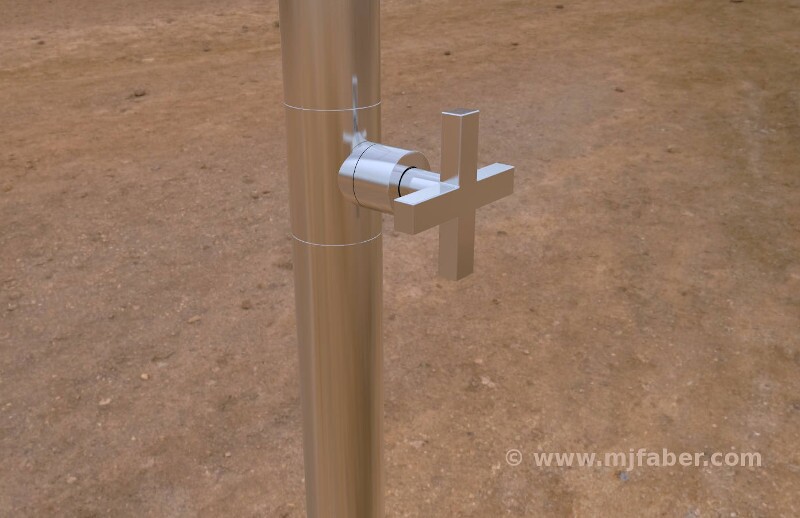

  • Minimal Cross handle stop tap in stainless steel aisi 316L
  • Column in two parts, lower section Ø 40mm and thickness 2mm, upper section Ø 40mm and thickness 3mm, in ss 316L
  • Faucet body in ss 316
  • Antiscale shower head Ø 240mm in ss 316L whitout ball join (in optional with ball join in ss 316, art.SN)
  • Base in inox 316L, at 3 points of anchorage, diameter 146mm and thickness 6mm.
  • Anchorage at floor by nr 3 points with kit in ss 316 (A4) (also available anchorage on sand/ground with inner in optional, art.INN)
  • Water supply from floor (under the base of the column)
  • Finishes available: mirror polished, brushed
  • Simple maintenance




_________________________________________________________________________________________

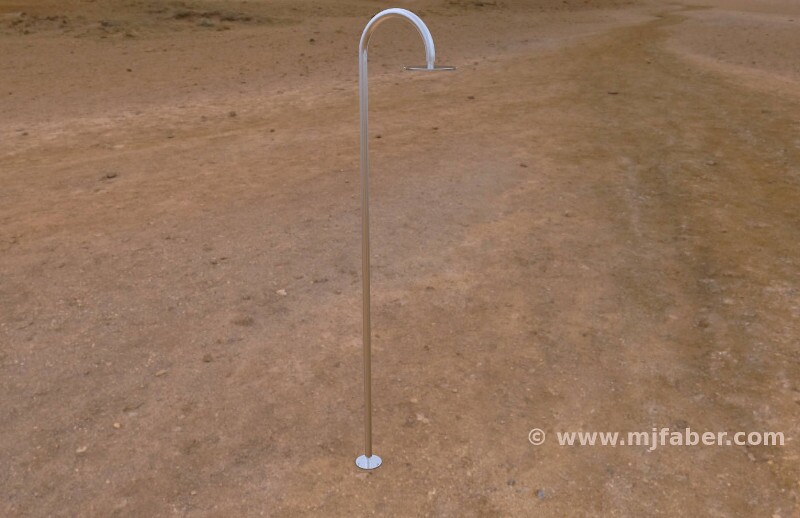

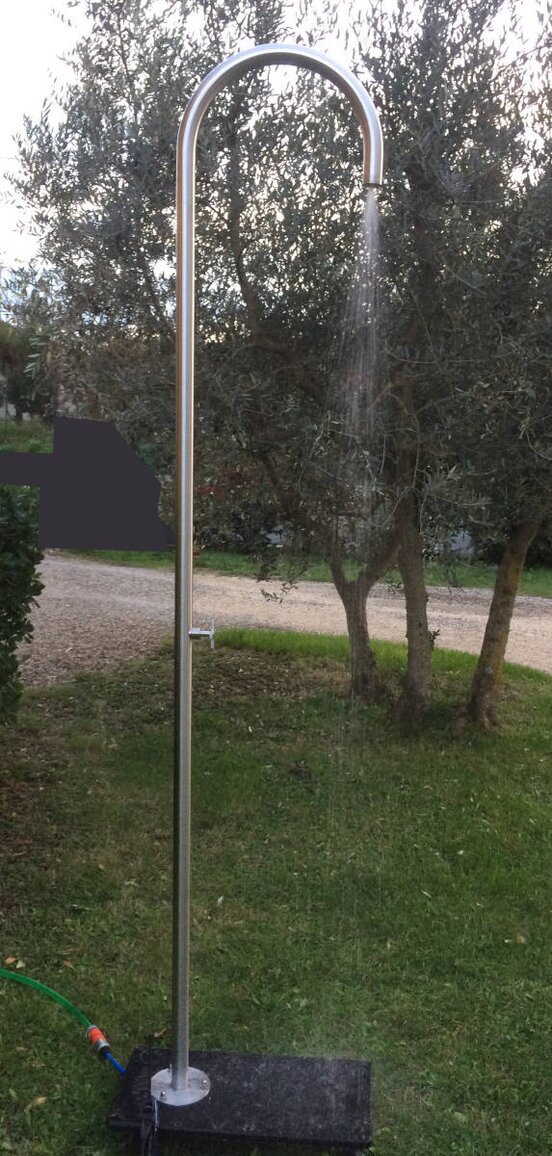

Line STILO CURVE COB-40 by MJ FABER: 1 place
Elegance and minimalist style, made in the best alloy of stainless steel for sea areas such as the s/s aisi  316L.
Made in Italy

rendering images
    • Nr. 1 line of water supply from cold or pre-mixed water
    • External actuation to the shower (es. photocell, token) or in optional actuation timed to chain, art. CAT, (faucet interposed between column end and shower head and chain to the side of the shower head with handle), or actuation timed to push button at floor, art. PTP, (to be placed on the edge of the area 'shower tray')

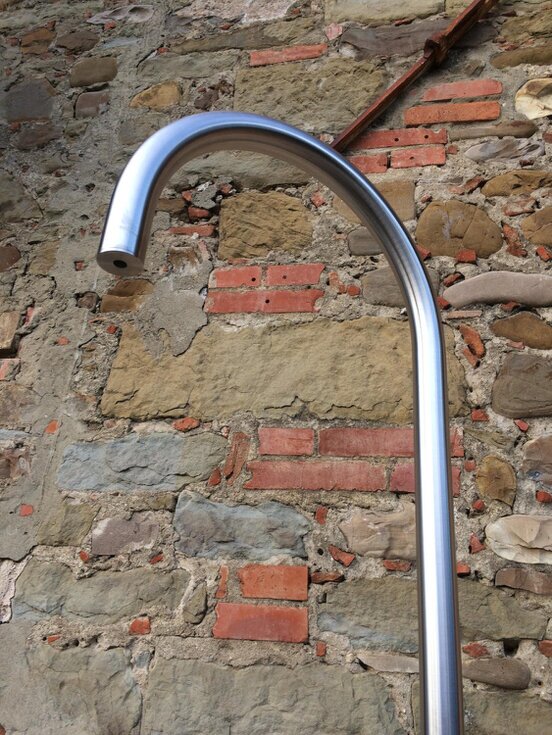

    • Column one body Ø 40mm and thickness 3mm in ss 316L

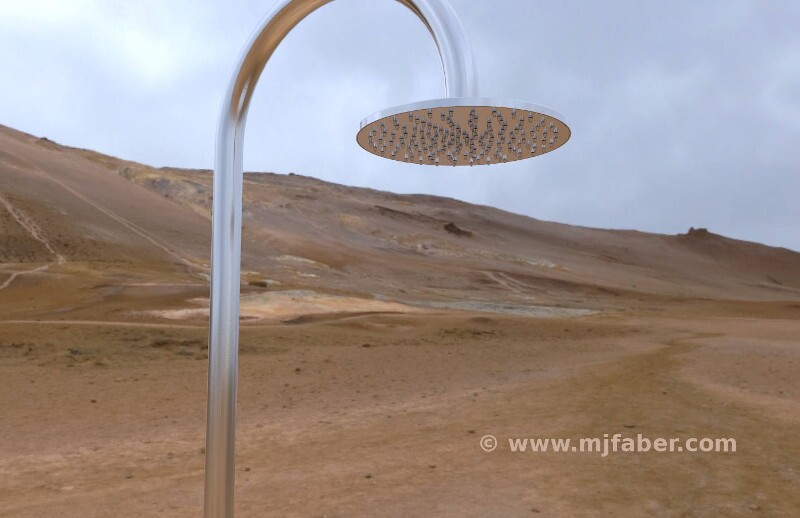

    • Antiscale shower head Ø 240mm in ss 316L whitout ball join (in optional with ball join in ss 316, art.SN)
    • Base in inox 316L, at 3 points of anchorage, diameter 146mm and thickness 6mm
    • Anchorage at floor by nr 3 points with kit in ss 316 (A4) (also available anchorage on sand/ground with inner in optional, art.INN)
    • Water supply from floor (under the base of the column)
    • Finishes available: mirror polished, brushed
    • Simple maintenance




    _________________________________________________________________________________________

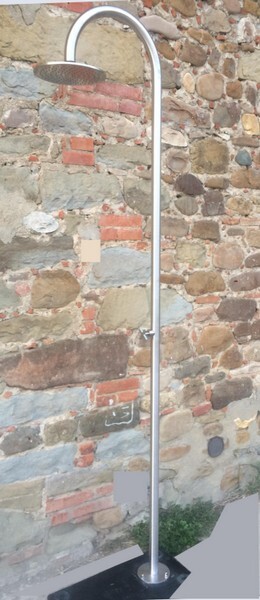

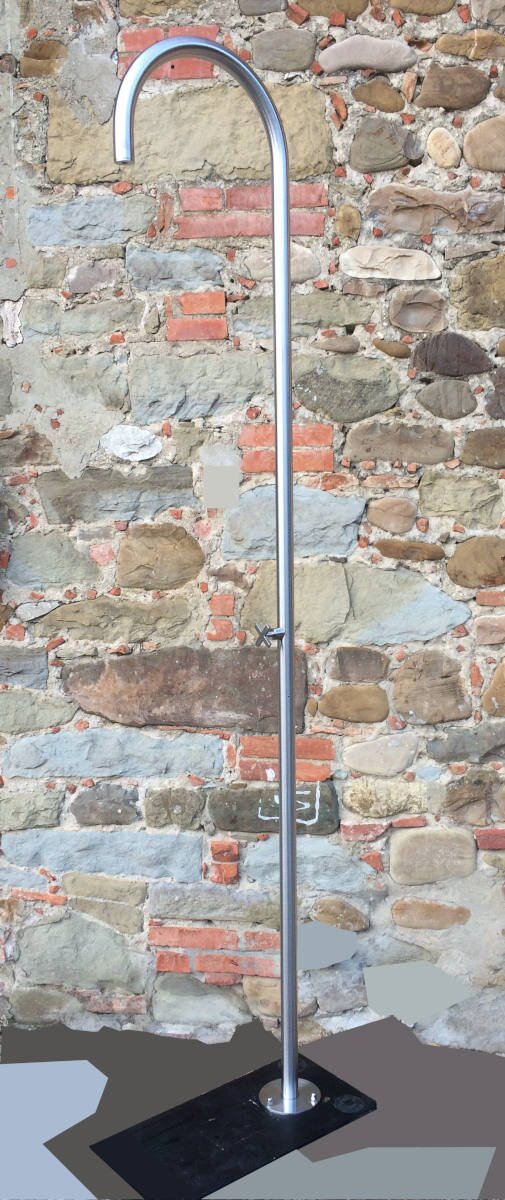

    Line STILO CURVE 40 TR 1M by MJ FABER: 1 place
    Elegance and minimalist style, made in the best alloy of stainless steel for sea areas such as the s/s aisi  316L.
    Made in Italy

    • Nr. 1 cold or pre-mixed water supply line
    • Operated with a traditional screw-down cross knob, tap body in 316L stainless steel
    • Single body column Ø 40mm and thickness 3mm 316L stainless
    • Round shower head diam. 25cm, with ball joint, anti-limescale with neutral silicone nozzles
    • Base plate in 316L stainless steel, with 3 anchor points, diameter 146mm and thickness 5mm.
    • Three-point floor anchorage by means of a 316 stainless steel kit (A4) (possible anchoring on ground / sand with the optional coupling)
    • Floor water supply (from under the floor)
    • Available finishes: mirror polished, brushed
    • Simple maintenance

    Dimensional prospectus Stilo Curve 40 TR 1M

    _________________________________________________________________________________________

    Line STILO CURVE 40 SH 1M by MJ FABER: 1 place
    Elegance and minimalist style, made in the best alloy of stainless steel for sea areas such as the s/s aisi  316L.
    Made in Italy
